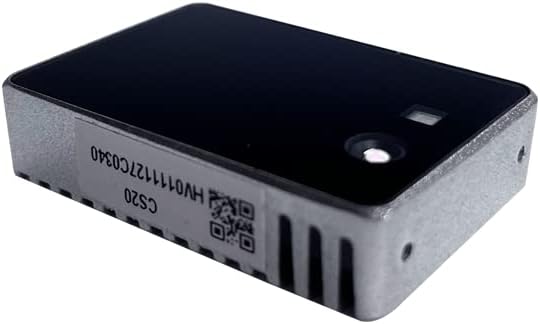

[ToF image sensor] CS20 is equipped with a ToF image sensor with a resolution of 640*480. It uses ToF technology to obtain three-dimensional information of objects and spaces. It has excellent performance such as long-distance and low power consumption, and provides users with convenient and efficient 3D perception capabilities.

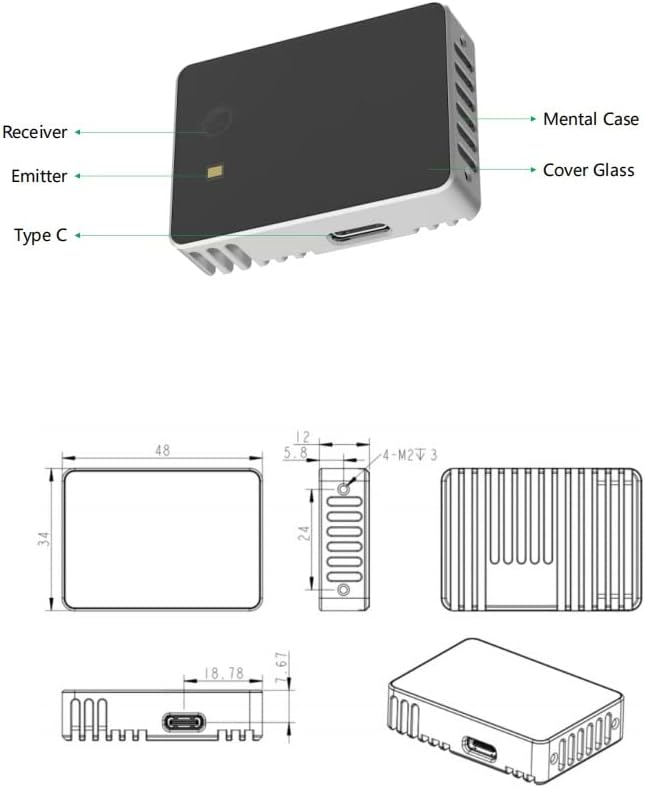

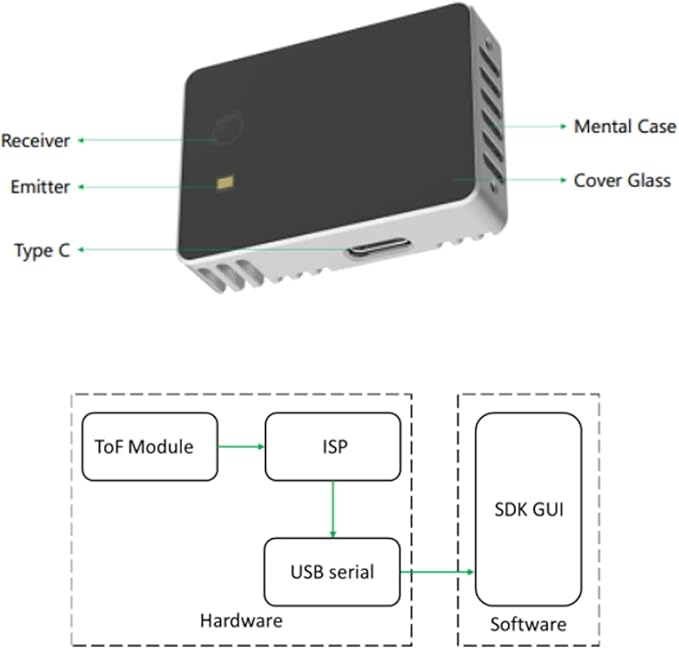

[Easy SDK extraction] The product supplies power through the Type C interface and outputs phase information. Users can obtain data such as depth.pointcloud through the SDK.
[Measurement Accuracy] Millimeter-level measurement accuracy; typical measurement range: 0.1-5 meters @ indoor white wall; resolution: 640*480; support depth, signal amplitude timing synchronization; adjustable range and frame rate;High dynamic measuring range
[Application Scenario] Robot SLAM; volume measurement; living body detection; somatosensory interaction; 3D modeling; security monitoring/people counting
[Wiki] Any problems, please contact us by click "youyeetoo" and ask a question or leave the message in our forum by "forum.youyeetoo .com/".
